Flow Forming Machine

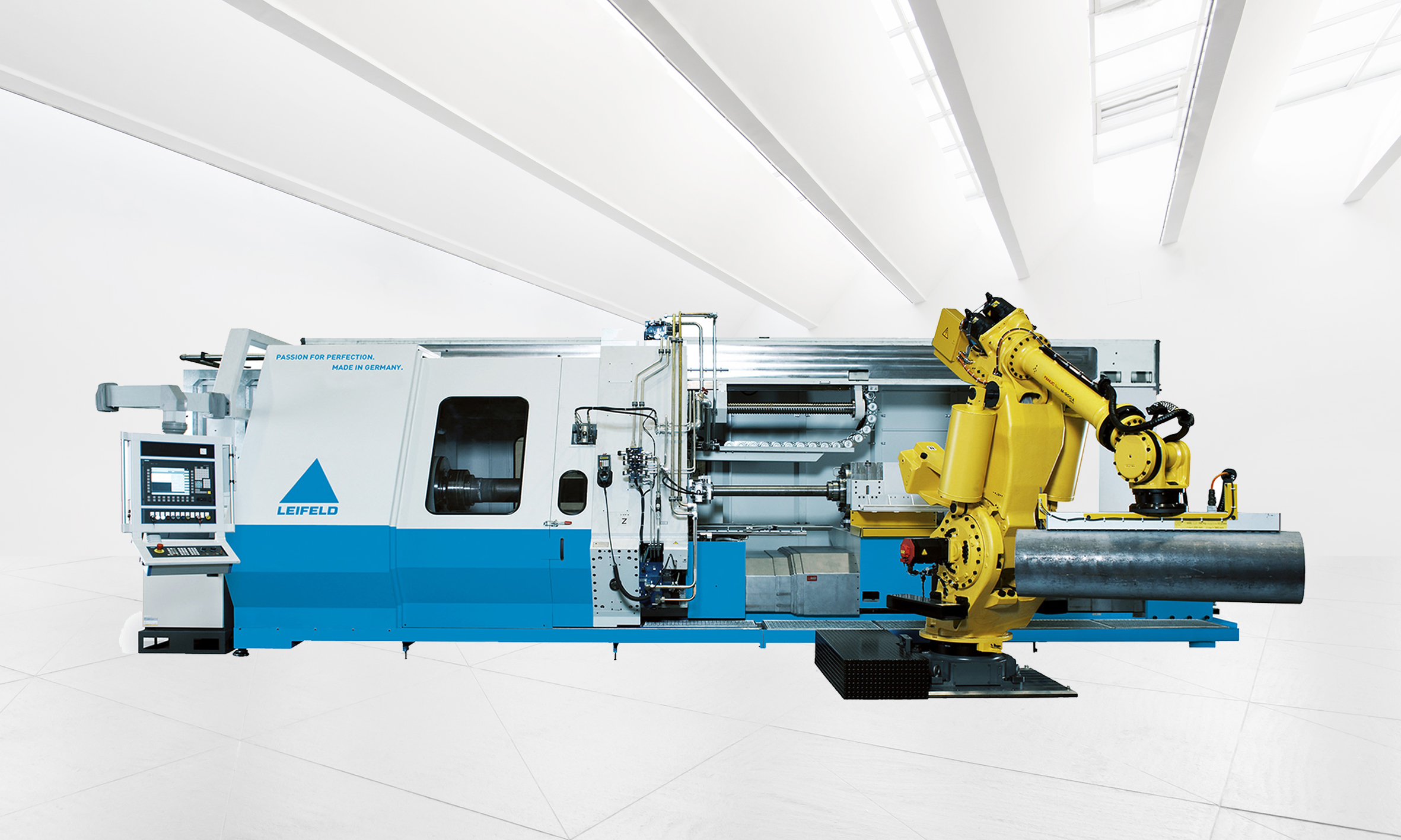

Leifeld ST 560 H Series
The LEIFELD ST 560 H Series is designed for heavy-duty forming of rotationally symmetrical hollow bodies with constant or varying wall thickness by flow forming via cylindrical, conical or embossed mandrel contours. Close tolerances and highest repeatability can be reached.
The machine is applicable for forming processes like forward flow forming, reverse flow forming and shear forming. A wide range of workpieces can be manufactured on this machine from most different unmachined parts or preforms and materials.
Main Characteristics
- Extremely sturdy and torsion-resistant frame construction
- Axially pulling feed with two diagonally positioned, synchronised ball screws spindle
- Electrically positionable tailstock with ball screw drive
- Loading and unloading can be performed by robots
- Maximum flexibility in the production of lengths, external diameters, wall thicknesses and reduction
Technical Data
| LEIFELD ST 560 H 1300 |
LEIFELD ST 560 H 2100 |
LEIFELD ST 560 H 3100 |
|
|---|---|---|---|
| Workpiece-Ø, min. | 50 mm | 55 mm | 55 mm |
| Workpiece-Ø, max. | 560 mm | 560 mm | 560 mm |
| Workpiece length, max. when | |||
| - Forward flow forming, approx. | 1,200 mm | 2,000 mm | 3,000 mm |
| - Reverse flow forming, approx. | 2,400 mm | 4,000 mm | 6,000 mm |
| Distance between centres, min. approx. | 1,985 mm | 1,985 mm | 2,985 mm |
| Distance between centres, max. approx. | 3,335 mm | 4,135 mm | 6,135 mm |
End products
- highly stress-resistant pipes
- hydraulic cylinders
- engine parts
- pressure tanks
- casing tubes
- fuel vessels
