Spinning Center

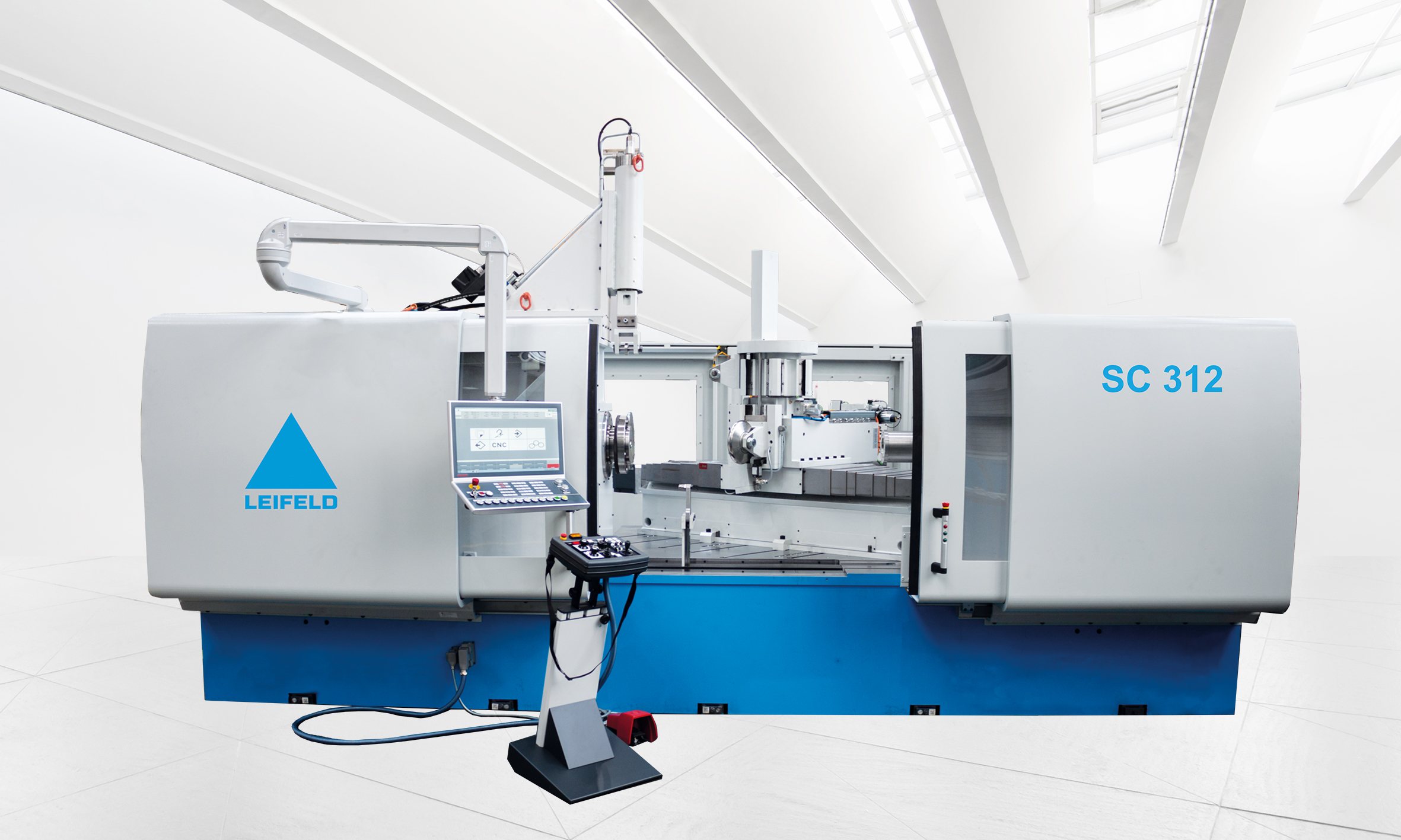

Leifeld SC 312

The LEIFELD SC Series is recommended for all companies with a frequently changing portfolio for smaller production batches or released quantities. At the heart of the development lie the programmable additional units which ensure swift, repeatable production adjustments. This applies to the centering device and trimming blade as well as to the machining unit BAE.

The spinning center immediately provides the opportunity to install manually adjustable or hydraulically portable additional units for companies with rarely changing product range. In addition to its flexible application and equipment potential, the LEIFELD SC Series also excels due to its modern, compact design.

Main Characteristics

  • Highest precision combined with maximized machine availability
  • Large flexibility in part dimensions and wall thickness
  • Large variety of materials to be processed, e.g. copper up to strong stainless-steel materials
  • Developed machine control by LEIFELD optimized for all applications of spinning processes enables customer-specific programming.
  • Offline programming software
  • High level of automation allows the time reduction of set up and product change over
  • Ready for fully automatic production

Technical Data

  SC 312 SC 312 S
Blank diameter, max. 1,200 mm 1,200 mm
Distance between centres 1,500 mm 1,900 mm
Longitudinal slide travel 800 mm 1000 mm
Transverse slide travel 400 mm 500 mm
Longitudinal thrust 70 kN 100 kN
Transverse thrust 70 kN 140 kN
Tailstock sleeve stroke 600 mm 1000 mm
Sleeve thrust 75 kN 100 kN

Main spindle drive
Threephase A.C. motor 37 kW 58 kW
Speeds, infi nitely variable 2,500 rpm
Main spindle speeds, step 1 400 rpm 300 rpm
Main spindle speeds, step 2 1,600 rpm 800 rpm

Tool mounting, DIN ISO 702-3 (formerly DIN 55027), size 11 11

End products

  • Reflectors, high bays, down lights
  • Fan parts, propeller hoods, suction nozzles
  • Pans, bowls, cooking pots, sieves
  • Cups and goblets, sacred items
  • Separator parts
  • Dish ends
  • Connectors, inlet rings
  • Bells, drum bases
  • Funnels
